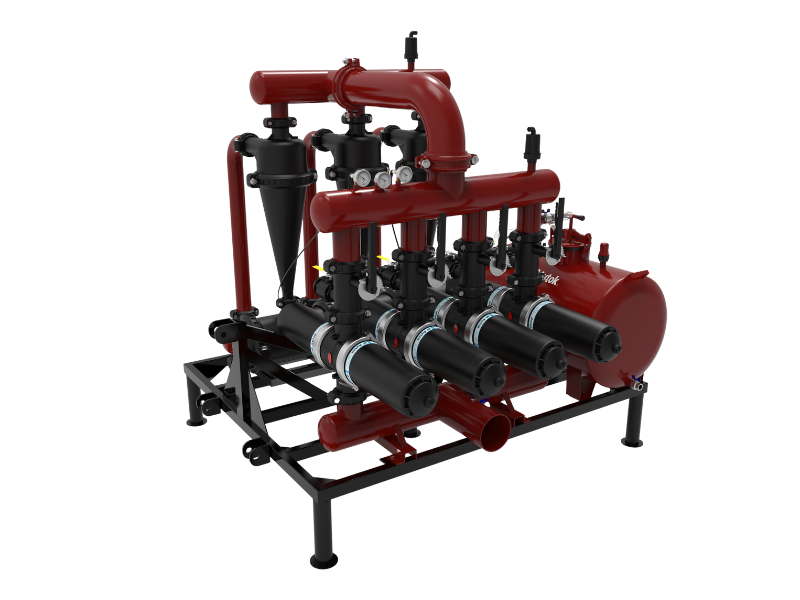

    Aytok Portable Manual Double Plastic Filter System with Hydrocyclone Pre-Filter and Fertilizer Tank

    Manufacturer: Aytok Filters
    Be the first to review this product

    Ready built on chassis system, three-point linkage frame.


    Body Material
    :
    PA6GFR30

    Disc Material
    :
    PP

    Maximum Working Pressure
    :
    6 Bar (87 PSI)

    Minimum Working Pressure
    :
    1 Bar (15 PSI)

    Maximum Working Temperature
    :
    60 °C (140 °F)

    Backwash Operation Criteria
    :
    Pressure Differential

    Backwash Controlling Unit
    :
    Manual

    Filtration Degree
    :
    20-50-100-130 micron (µ)

    Painting
    :
    Epoxy Polyester, Electrostatic Powder Coating

    Made in
    :
    Turkey
    Manufacturer part number: A

    Aytok Portable Manual Double Plastic Filter System with Hydrocyclone Pre-Filter and Fertilizer Tank

    • Filter Body Material: PA6GFR30
    • Disc Material: PP
    • Maximum Working Pressure: 6 Bar (87 PSI)
    • Minimum Working Pressure: 1 Bar (15 PSI)
    • Maximum Working Temperature : 60 °C (140 °F)
    • Back Flush Operation Criteria: Pressure Differential
    • Back Flush Controlling Unit : Manual
    • Filtration Degree: 20-50-100-130 micron (µ)
    • Manifold Material: Steel painted in red powder coated, steel grade S195T
    • Manifold Painting Method: Red powder coated
    • Painting Material: Epoxy Polyester*
    • Ready built on chassis system, three-point linkage frame



    Availability: 8-10 weeks



    CODE SYSTEM CAPACITY (m³/h)
    S422 4" 2X3" PLASTIC HYDROCYCLONE + 2X4" DOUBLE PLASTIC FILTER 70-100
    S523 5" 2X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER 100-120
    S533 5" 3X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER 120-150
    S634 6" 3X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER 150-180
    S644 6" 4X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER 180-220
