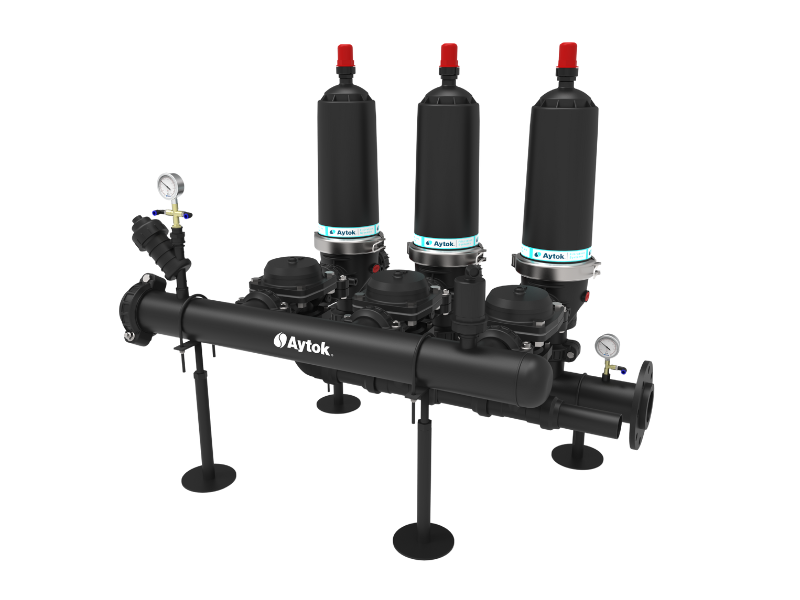

    Aytok Plastic Automatic Disc Filter System

    Manufacturer: Aytok Filters
    Be the first to review this product

    Plastic automatic filter system with steel manifold.


    Body Material
    :
    PA6GFR30

    Disc Material
    :
    PP

    Maximum Working Pressure
    :
    8 Bar (116 PSI)

    Minimum Working Pressure
    :
    2 Bar (29 PSI)

    Maximum Working Temperature
    :
    60 °C (140 °F)

    Backwash Operation Criteria
    :
    Time interval or Pressure Differential

    Backwash Controlling Unit
    :
    Electronic (AC/DC) Control

    Filtration Degree
    :
    20-50-100-130 micron (µ)

    Painting
    :
    Epoxy Polyester, Electrostatic Powder Coating

    Made in
    :
    Turkey
    Manufacturer part number: A

    Aytok Automatic Plastic Disc Filter System

    • Filter Body Material: PA6GFR30
    • Disc Material: PP
    • Maximum Working Pressure: 8 Bar (116 PSI)
    • Minimum Working Pressure: 2 Bar (29 PSI)
    • Maximum Working Temperature : 60 °C (140 °F)
    • Back Flush Operation Criteria: Time and/or Pressure Differential
    • Back Flush Controlling Unit : Electronic (AC/DC) Control
    • Filtration Degree: 20-50-100-130 micron (µ)
    • Manifold Material: Steel painted in red powder coated, steel grade S195T
    • Manifold Painting Method: Red powder coated
    • Painting Material: Epoxy Polyester*



    Availability: 8-10 weeks



    Code SYSTEM CAPACITY (m³/h)
    A222 2"2X2"PLASTIC DISC FILTER SYSTEM 10 - 30
    A323 3"2X3"PLASTIC DISC FILTER SYSTEM 30 - 50
    A433 4"3X3"PLASTIC DISC FILTER SYSTEM 50 - 70
    A443 4"4X3"PLASTIC DISC FILTER SYSTEM 70 - 100



    Aytok filtration system
