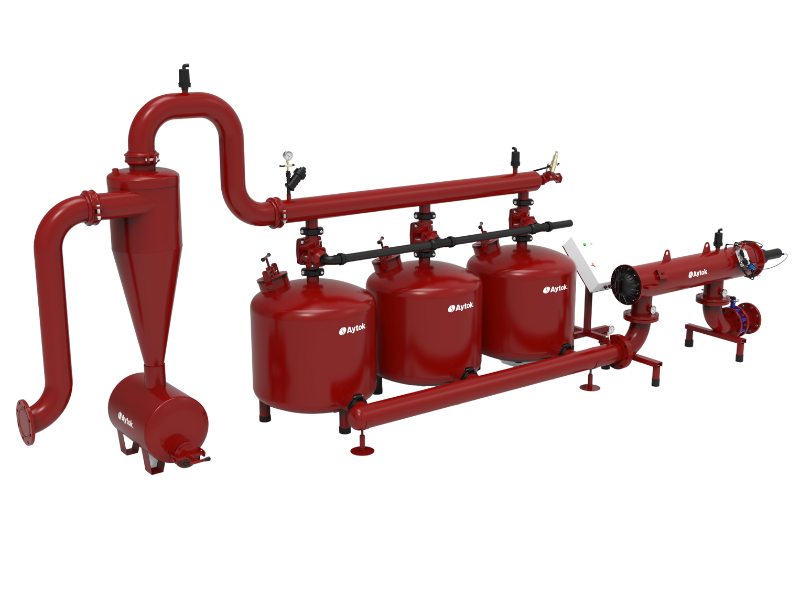

    Aytok Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone

    Manufacturer: Aytok Filters
    Be the first to review this product

    Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone.


    Screen Material
    :
    SS316

    Maximum Working Pressure
    :
    8 Bar (116 PSI)

    Minimum Working Pressure
    :
    2 Bar (29 PSI)

    Maximum Working Temperature
    :
    60 °C (140 °F)

    Backwash Operation Criteria
    :
    Time interval or Pressure Differential

    Backwash Controlling Unit
    :
    Electronic (AC/DC) Control

    Filtration Degree
    :
    20-2000 micron (µ)

    Painting
    :
    Epoxy Polyester, Electrostatic Powder Coating

    Made in
    :
    Turkey
    Manufacturer part number: AP

    Aytok Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone

    • Screen Material: SS316
    • Manifold Material: Steel painted in red powder coated, steel grade S195T
    • Maximum Working Pressure: 8 Bar (116 PSI)
    • Minimum Working Pressure: 2 Bar (29 PSI)
    • Maximum Working Temperature : 60 °C (140 °F)
    • Back Flush Operation Criteria: Time and/or Pressure Differential
    • Back Flush Controlling Unit : Electronic (AC/DC) Control
    • Filtration Degree: 20-2000 micron (µ)
    • Painting Method: Electrostratic Powder Coating Painting
    • Material: Epoxy Polyester



    Availability: 8-10 weeks



    CODE SYSTEM CAPACITY (m³/h)
    MHA223020VEF 2"HYDROCYCLONE+2"2X2"SAND MEDIA FILTER(18"TANK)+1 X VEF102F 10-20
    MHA323030VEF 3"HYDROCYCLONE+2"2X3"SAND MEDIA FILTER(24"TANK)+1 X VEF103 20-50
    MHA433030VEF 4"HYDROCYCLONE+4"3X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 50-70
    MHA443030VEF 4"HYDROCYCLONE+4"4X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 70-100
    MHA553030EF 5"HYDROCYCLONE+5"5X3"SAND MEDIA FILTER(24"TANK)+1 X EF105 100-130
    MHA663030EF 6"HYDROCYCLONE+6"6X3"SAND MEDIA FILTER(24"TANK)+1 X EF106 130-180
    MHA643060EF 6"HYDROCYCLONE+6"4X3"SAND MEDIA FILTER(36"TANK)+1 X EF126S 150-200
    MHA853060EF 2X5"HYDROCYCLONE+8"5X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 200-250
    MHA863060EF 2X6"HYDROCYCLONE+8"6X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 250-300
    MHA873060EF 2X6"HYDROCYCLONE+8"7X3"SAND MEDIA FILTER(36"TANK)+2 X EF106 300-350
    MHA1083060EF 2X6"HYDROCYCLONE+10"8X3"SAND MEDIA FILTER(36"TANK)+2 X EF126S 350-400
    MHA1063080EF 3X6"HYDROCYCLONE+10"6X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 400-450
    MHA1073080EF 3X6"HYDROCYCLONE+10"7X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 450-500
    MHA1083080EF 3X6"HYDROCYCLONE+10"8X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 500-550
    MHA1293080EF 4X6"HYDROCYCLONE+12"9X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 550-640
