    Atom 40 with Wheeled Cart

    Manufacturer: DuCaR Sprinklers Australia
    Be the first to review this product

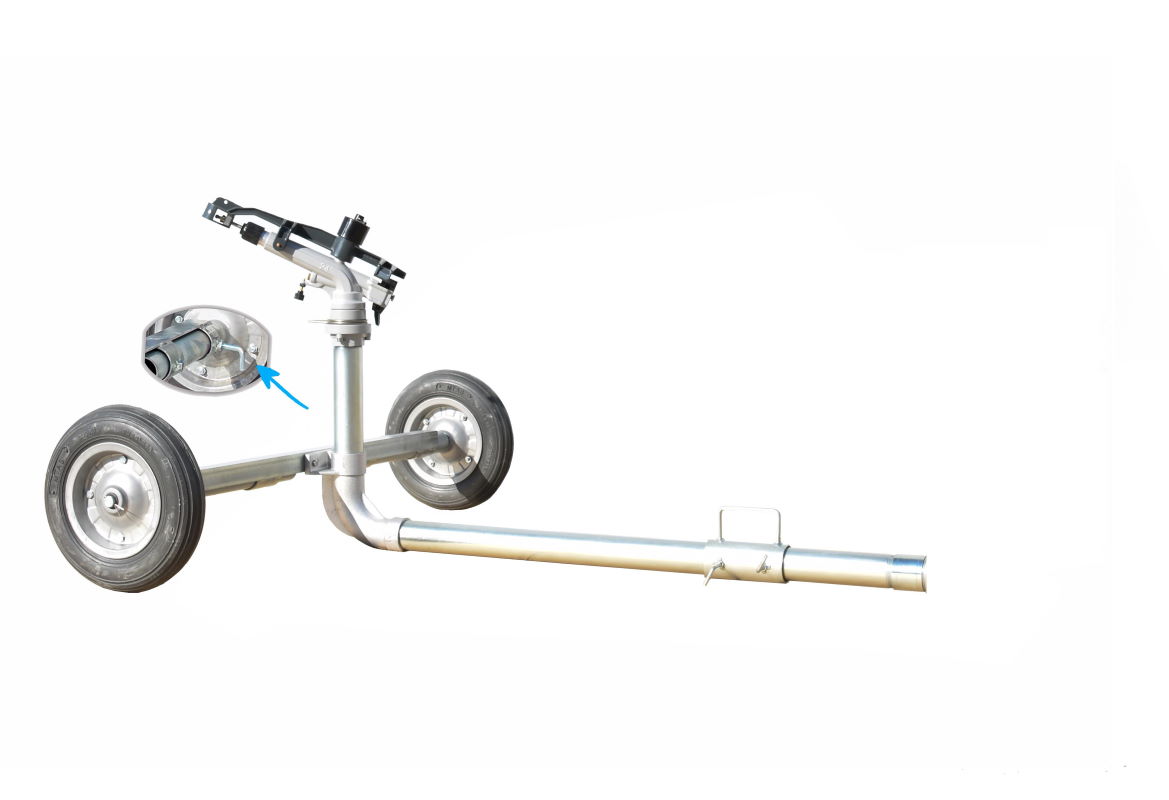

    High volume impact sprinkler head with a wheeled cart! Portable long throw sprinkler cart.


    Water Input
    :
    2" Female BSP

    Working Pressure
    :
    29 - 70 psi

    Water Flow
    :
    195 - 532 l/min

    Shooting Radius
    :
    22 - 39 m

    Nozzles
    :
    14, 16, 18, 20 mm

    Body Angle
    :
    24°

    Weight
    :
    2.5 kg

    Operation
    :
    Full & Part Circle

    Material
    :
    Cast-Iron, Aluminium, Brass

    Made in
    :
    Turkey
    Manufacturer part number: Atom40WC

    DuCar Atom 40 with 2" Heavy Duty Wheeled Cart High Volume - Long Throw Impact sprinkler!

    We guarantee 100% satisfaction!

    This unit comes with;

    1x DuCaR Atom 40 Sprinkler Head

    1x DuCaR 2" Wheeled Cart with extendable legs

    This highly efficient sprinkler rotating in full or part circle, is an impact sprinkler operating at medium pressure (2.0 – 5 bar). Thanks to replaceable sprinkler nozzles and adjustable breaker, it ensures you to irrigate your field with minimum water and excellent uniform water distribution.

    It is excellent for agricultural, mining, dust control, stationary and portable systems. This model has aluminium main body with rotating mechanism of lower body made of brass, Teflon and stainless steel. It is equipped with specially designed and adjustable breaker. Lower body is specially designed for sandy water. Also its specially designed breaker has licence certificate. It has a second nozzle outlet that can be plugged at low pressure.

    With its specially designed low body angle made of Teflon and brass, this product may also operate with waste water.



    Technical Specifications



    Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
    Irrigated Area Rainfall per hour
    mm inch kg/cm2 lbs/inch m feet l/min m3/h G.P.M m2 acre mm/h
    14 0.47 2 29 22,0 72 195 11.7 52 1520 0.38 7.7
    14 0.47 3 44 27.0 89 239 14.3 63 2289 0.57 6.2
    14 0.47 4 56 30.0 98 277 16.6 73 2826 0.70 5.9
    14 0.47 5 70 33.0 108 309 18.5 81 3419 0.84 5.4
    16 0.55 2 29 23.0 75 247 14.8 65 1661 0.41 8.9
    16 0.55 3 44 29.0 95 303 18.2 80 2641 0.65 6.9
    16 0.55 4 56 33.0 108 351 21.0 92 3419 0.84 6.1
    16 0.55 5 70 35.0 115 391 23.4 103 3847 0.95 6.1
    18 0.62 2 29 22.0 72 309 18.5 81 1520 0.38 12.2
    18 0.62 3 44 30.0 98 378 22.7 100 2826 0.70 8.0
    18 0.62 4 56 33.0 108 436 26.2 115 3419 0.84 7.7
    18 0.62 5 70 36.0 118 487 29.2 129 4069 1.01 7.2
    20 0.70 3 44 31.0 102 376 22.5 99 3018 0.75 7.5
    20 0.70 4 56 35.0 115 460 27.6 122 3847 0.95 7.2
    20 0.70 5 70 39.0 128 532 31.9 140 4776 1.18 6.7
